Servo Test Cube
by Thingiverse
Last crawled date: 6 years, 5 months ago

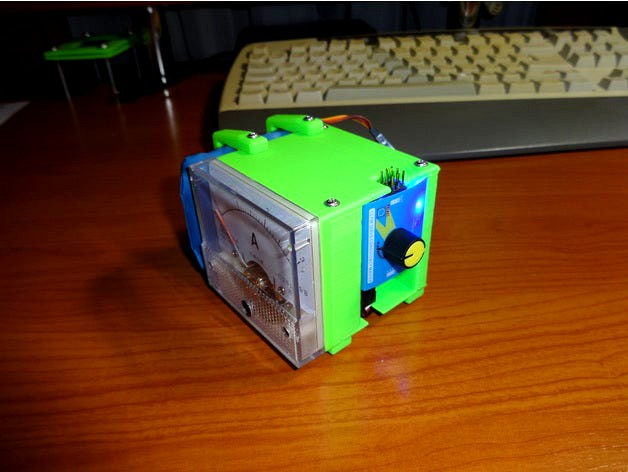

This is a servo tester cube that can measure its current. Also includes a battery compartment. Also important is the power consumption of the servos. If you want to dimension PolySwitch fuses, too.
For more information about fuses, visit:http://rc.emiter.hu/rc-miskolc/index.php/f1-on-board-fuse
andhttp://rc.emiter.hu/rc-miskolc/index.php/pb3-battery-combinerfuses-power-board
Used materials:
Instrument (3A):https://www.aliexpress.com/item/1PCS-85C1-A-1A-2A-3A-5A-10A-15A-20A-30A-50A-75A-DC-Analog-Meter/32897836362.html?spm=a2g0s.9042311.0.0.27424c4dez5pjj
Servo tester:https://www.aliexpress.com/item/Multi-Servo-Tester-3CH-ECS-Consistency-Speed-Controler-Power-Channel-CCPM-Meter-Master-Checker-RC-Dron/32957541836.html?spm=a2g0s.9042311.0.0.27424c4dez5pjj
screws:
2.4x10mm phillips and 2pcs 2.4x6mm phillips
Servo extension cabel: 10-20cm
The servo must be removed from its packaging and screwed into place. Cut and seal the package with instant glue (this will be the servo cover).
