Servo Dial
by Thingiverse
Last crawled date: 6 years, 5 months ago

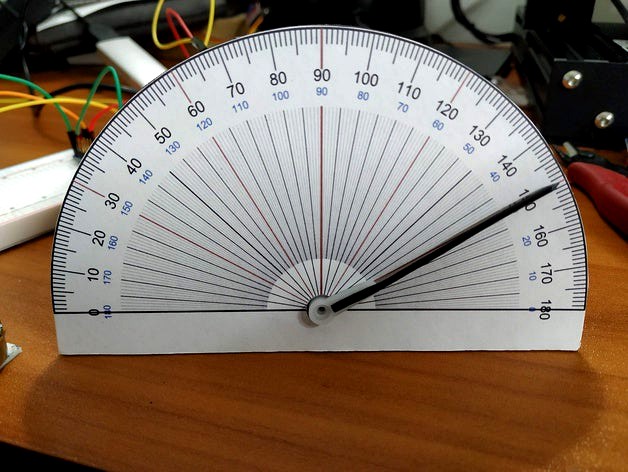

A dial to show the angular movement of a servo for educational purposes or measure accuracy.
You will need a 9g servo.
The semicircle.png file must be printed in a Letter format paper.
Note that due to the construction the angle is inverted, it means that when you send 180 to the servo, it shows zero and vice versa.
https://youtu.be/T5afIRtY_bg
You will need a 9g servo.
The semicircle.png file must be printed in a Letter format paper.
Note that due to the construction the angle is inverted, it means that when you send 180 to the servo, it shows zero and vice versa.
https://youtu.be/T5afIRtY_bg
