Sensor Test Rig by DjDemonD
by Thingiverse
Last crawled date: 5 years, 4 months ago
See it on YouTube:
https://youtu.be/mq37Aqcgydk

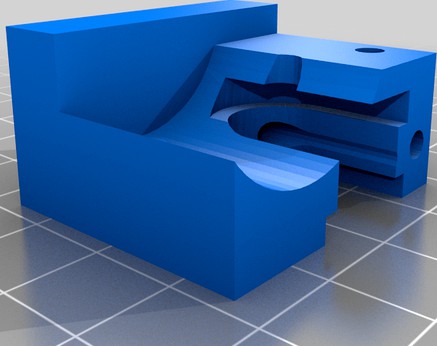

Test rig STLs, as requested by people on YouTube. For testing 3D printer Z sensors/micro switches.
You will also need the firmware and gcodes which are https://1drv.ms/u/s!Apv79JfGbPIwkdFAaFO96Qat8RNuuA?e=gdZNOQ
You'll need an AT MEGA 2560 arduino, a ramps shield, or some other form of microcontroller that can run marlin, some smooth rods, some bearings, a lead screw of some type.
Its basically one axis from a 3D printer, or simple CNC/engraver. I am not going to provide full build instructions, if you cannot figure out how to build it, should you be testing sensors?
