Scroll saw dust collector for Scheppach SD1600V by 3Dprinty
by Thingiverse
Last crawled date: 4 years, 10 months ago

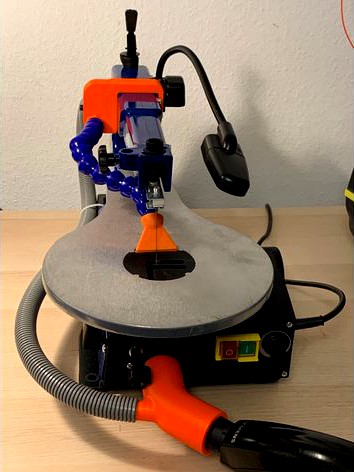

Dust collector system for Scheppach SD1600V scroll saw.
It consists of a vacuum cleaner adapter/splitter for a Siemens Z 5.0 vacuum "tube" which measures 34 mm in diameter and a loc-line adapter integrated into a mount.
The loc-line used is a 1/2" type measureing approximately 34 cm in length.
Prints without any support.
For maximum strength i suggest using 80..100% infill.
For the connection tube i used a regular, felxible electric installation tube with an inner diameter of 19 mm.
It consists of a vacuum cleaner adapter/splitter for a Siemens Z 5.0 vacuum "tube" which measures 34 mm in diameter and a loc-line adapter integrated into a mount.
The loc-line used is a 1/2" type measureing approximately 34 cm in length.
Prints without any support.
For maximum strength i suggest using 80..100% infill.
For the connection tube i used a regular, felxible electric installation tube with an inner diameter of 19 mm.
