Scalar - E3D Chimera dual extrusion mount by 3DModularSystems

Last crawled date: 4 years, 12 months ago

Purpose

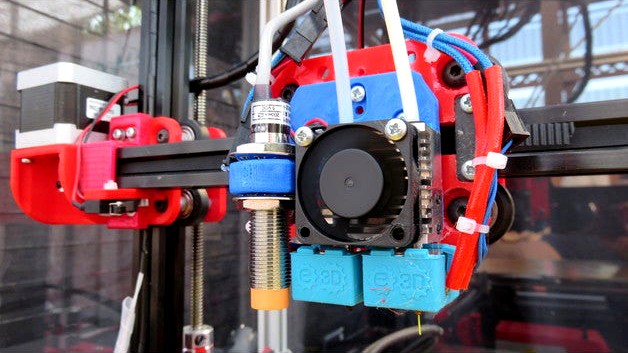

This part is the E3D Chimera dual extrusion mount for Scalar S / Scalar L / Scalar XL Premium 3D printers.
Compatibility
Compatible with Scalar Family 3D printers X carriage
Compatible with inductor probe
Nutz and bolts required
3xM3x8 thermo plastic screws
2xM3x25
2x 608Z
4xM3x12 Thermoplastic screws
2xM3x50 + 2xcompression springs
2xM3HexNut
2xM6x12 + 2xM6Tnuts (for 3030 extrusions)
2xM4x8 + 2xM4 Tnut (for 2020 extrusions)
2xPC4-01 M6 Passthrough pneufic connectors
2x50cm PTFE tube (take longer for machine bigger than 20x20x20)
1xRRD fan extender module (if you want to keep your PLA cooling fans)
1x 20cm 2Pins female/female wire
Where to find
Original E3D chimera kit can be found here:http://3dmodularsystems.com/en/75mm-hotends/496--e3d-chimera-dual-extrusion-hot-end.html
Complete upgrade kit for Scalar 3D printers can be found here:http://3dmodularsystems.com/en/75mm-hotends/544--s-dual-extrusion-upgrade-chimera-plus-for-scalar-s.html
Updates
2018.09.03 - add X carriage back blower fan holder
2018.08.14 - original release
