Sapphire S - E3Dv6 Mount with 5015 Fanduct by Blueforcer
by Thingiverse
Last crawled date: 5 years, 5 months ago

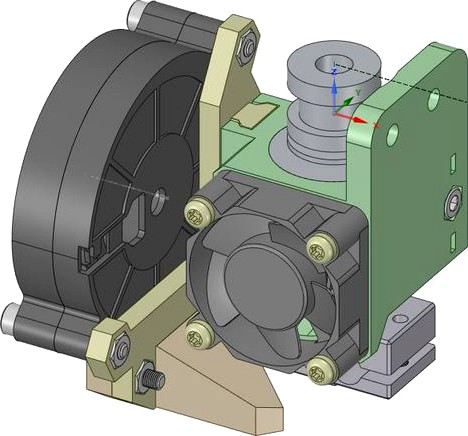

E3Dv6 Mount for the Two Trees Sapphire S
The air flow has been CFD optimized ensuring equal air distribution into three areas: before, below and behind the nozzle.
The part cooling duct should be positioned 1-2 mm higher than nozzle end. The height can be adjusted in 1mm steps.
Printing:
Clip - for the best strength print clip in original horizontal orientation - requires support.
Fanduct - print flat, no supports
Link - print flat, no supports
Material: PET-G or ABS
Layer height: 0.15-0.2 mm
Parts:
1 x 5015 fan blower
2 x M3 20 mm bolt
2 x M3 7-10 mm bolt
1 x M3 30 mm bolt or 2x zip ties
5 x M3 nut
