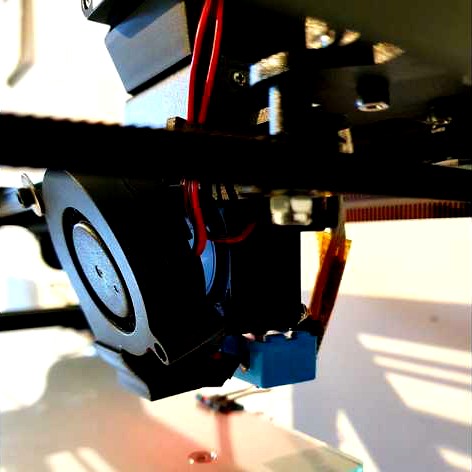

Sapphire Plus E3D V6 Mount + BLTouch by DavaD
by Thingiverse
Last crawled date: 5 years, 8 months ago
This is a remix of Thing:4078119
This is the link:https://www.thingiverse.com/thing:4078119
Thanks Diymaster1 for your STEP files, I changed something to fit this mod to my Sapphire Plus.
I changed the position of the bowden coming from the E3D to help me to install a direct Bondtech Extruder, I also changed the holes position of fanduck and fanduck holder.
This is the link of Direct Drive Mount: https://www.thingiverse.com/thing:4063984
Materials:
4010 fan for heatsink cooling, I used a Noctua NF-A4x10 FLX (if you decide to use a noctua you need to use a step down-converter as they are only available in 12v or 5v and the system uses 24v)
5015 radial/blower fan
2x m3 50mm screws
2x m3 20-30mm screws
4x m3 threaded inserts
and screws for securing the fan
optional 3x m4 threaded inserts
e3d V6 hotend
