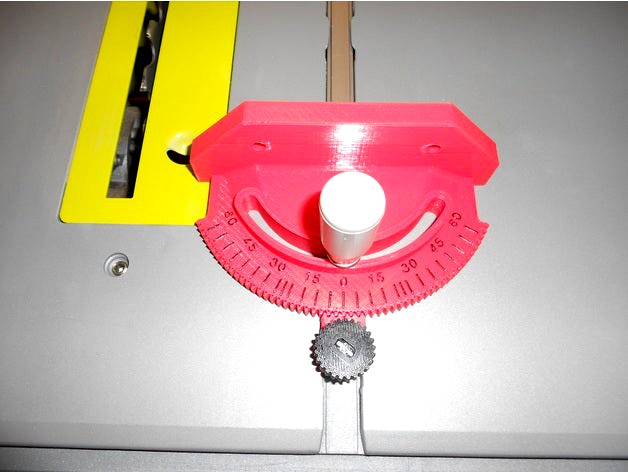

Ryobi Table Saw Miter Improvement by Vetterick
by Thingiverse
Last crawled date: 4 years, 7 months ago
This new saw is very nice, but has a few issues with the attachments, print this and you will never experience the miter slipping again.
I put the graduations at 2.5 degrees and placed a mark at the important 22.5 degree spot.
you will need a 10-24 X 3/4" screw (I think its actually m5 x 1 pitch, but I can't get one of them), grind or file the head flush with the thread on opposite sides and press it through the knob.
You can press out the 5mm pin from the old miter (don't try to turn it, its knurled), drill the pin hole to 5mm in the new miter and press in the pin, use the original large knob and washers, I used a sharpie on the lettering.
I printed this with PLA and everything fits very well.
I put the graduations at 2.5 degrees and placed a mark at the important 22.5 degree spot.
you will need a 10-24 X 3/4" screw (I think its actually m5 x 1 pitch, but I can't get one of them), grind or file the head flush with the thread on opposite sides and press it through the knob.
You can press out the 5mm pin from the old miter (don't try to turn it, its knurled), drill the pin hole to 5mm in the new miter and press in the pin, use the original large knob and washers, I used a sharpie on the lettering.
I printed this with PLA and everything fits very well.
