RYOBI 18V Battery Mini USB Charger by nafis

Last crawled date: 4 years, 6 months ago

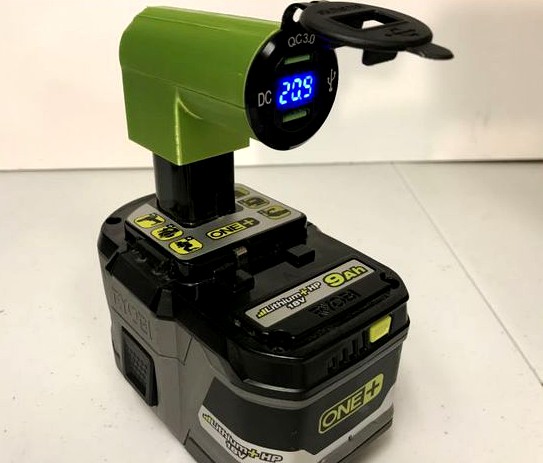

This is a small / compact USB charger for RYOBI 18V One+ batteries.
It uses the Ryobi 30001044 replacement terminal that snaps in. You can purchase different 12-24V Sockets to install. I have used one that has two QC 3.0 USB ports.
Parts:
Ryobi 30001044 replacement terminals ( https://www.partswarehouse.com/Ryobi-Contact-Plate-Holder-Assembly-RY-300001044-p/hm-300001044.htm )
Quick Charge 3.0 USB Charger Socket ( https://amzn.to/3aQGS1y )
36W Fast PD USB-C Car Charger with USB Quick Charge 3.0 and Type C Charger Socket ( https://amzn.to/34pX8FA )
1/4" female terminals ( https://amzn.to/32hGPIb )
Tools:
Crimper ( https://amzn.to/3iZzvrl )
Wire Stripper ( https://amzn.to/3aJLkyV )
Assembly Video:
https://youtu.be/2QhG4a6-bGo
