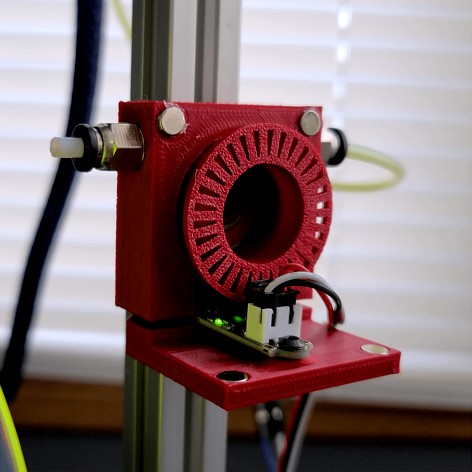

Runout En-Coder-Cube by rwmech
by Thingiverse
Last crawled date: 5 years, 3 months ago
This is an open source Filament Runout Encoder which detects filament jams in addition to filament runout. You only need a few parts for this project most of which can be found in your shop already.
You can watch the video on how to assemble it here: https://youtu.be/v2mQ4X1J3cs
Bill of Materials
1 - 608 Skateboard Bearing : https://amzn.to/3oyXzEV
2 - M3 8MM Screws : https://amzn.to/3bgc8Jq
1 - M3 6mm Screw: https://amzn.to/3bgc8Jq
2 - M10 Press Fit Fittings: https://amzn.to/390PWQI
1 - Small Rubber Band
1 - Optical Filament Sensor: https://amzn.to/3nm6zf0
8 - 6mm x 3mm Magnets: https://amzn.to/2MFK4oK
Some short lengths of bowden depending on your buildhttps://amzn.to/393qbzo
