Rumba shield for TMC2130 + LCD + BL-touch / servo by TimotheFrignac
by Thingiverse
Last crawled date: 4 years, 7 months ago

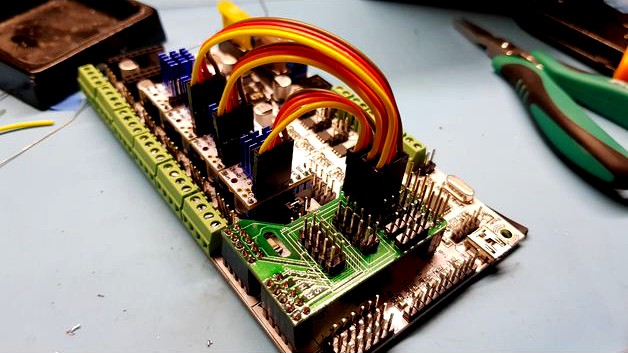

This is all what you need to install TMC2130 SPI stepper motor drivers on a Rumba board. It basically connect the SPI wire from the screen to the TMC2130 and use different CS signals so you can have everything runing together.
BOM :
1 PCB
some single row male pin header
some double row male pin header
some double row female pin header
some double row male to female pin header
TMC2130
some cable and dupont connectors
to order PCB :
The PCB have been designed in Eagle. I uploaded the CAD files and the zip containing the gerber files. The zip can directly be used to order PCBs on a website such as JLCPCB, SeeedStudio, PCBWay, Elecrow, ...
I personnaly prefer JLCPCB since they are quicker and cheaper than the other one. To reduce the cost for shipping, you can chose a 1,2mm thick board and only ask 5 (the price of the board is the same if you order 10pcs, but the shipping cost is calculated accordingly to weight)
BOM :
1 PCB
some single row male pin header
some double row male pin header
some double row female pin header
some double row male to female pin header
TMC2130
some cable and dupont connectors
to order PCB :
The PCB have been designed in Eagle. I uploaded the CAD files and the zip containing the gerber files. The zip can directly be used to order PCBs on a website such as JLCPCB, SeeedStudio, PCBWay, Elecrow, ...
I personnaly prefer JLCPCB since they are quicker and cheaper than the other one. To reduce the cost for shipping, you can chose a 1,2mm thick board and only ask 5 (the price of the board is the same if you order 10pcs, but the shipping cost is calculated accordingly to weight)
