Direct replacement stock for a standard Ruger 10/22.

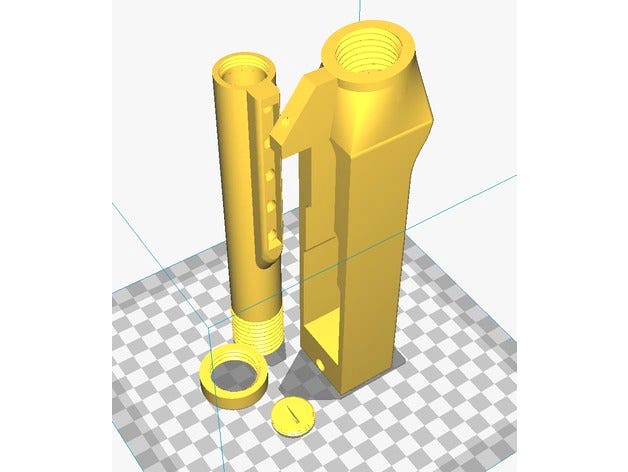

AR15 style. It uses the standard stock mounting screw to hold it in place. The receiver locks into the housing. The standard ar15 buffer tube dimensions were used except the threading. Storage is incorporated in the tube. The tube was canted 10 degrees down. No known issued yet. It has not been printed and tested for fit yet.
20Jul17
Printed and confirmed the receiver housing fits snug and properly conforms around the factory receiver. The receiver mounting screw lines up properly. The pistol grip screw lines up properly. The pistol grip fits very snug. The receiver locks down into the stock housing and will not lift in the rear. The buffer storage tube has been sent to octopi for printing. The receiver housing was printed upside down at 45 degrees on the bed in order to fit on a 220X220 bed. A brim with supports touching the build plate was used. Wall thickness as well as top and bottom was set at 2mm. Inland PLA 1.75mm black was used. infill was set to 50% if I remember correctly although with the 2mm walls it will fill most of the model. The hole for the pistol grip is undersized to allow for drilling/melting and threading to desired size.
22Jul17
Confirmed the buffer tube fits into the receiver housing as well as a standard AR-15 adjustable stock fits on to the tube.
Find the latest updated version here https://www.thingiverse.com/thing:2454304
