RPieces-TableTopXYZ by TGit-Tech

Last crawled date: 4 years, 8 months ago

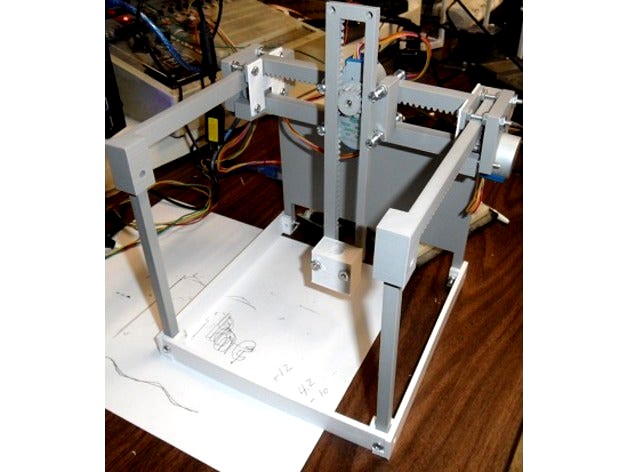

3d print a working XYZ-Plotter for around $25.
A newer version 2.0 of this exists at https://www.thingiverse.com/thing:2821826
Demonstration Video @ https://www.youtube.com/watch?v=4aUQkjFIM5M
Project Resides @ https://github.com/tgit23/RPieces-TableTopXYZ
See link for pricing details, assembly, setup and user manual.
Building this project requires
(1) 3D Printer with a build surface of at least 190mm x 190mm ... $N/A
(1) Arduino UNO microcontroller / half breadboard / jumper kit ... $10.19
(4) 28BYJ-48 Stepper Motors with ULN2003 Drivers ... $10.34
(~20) Male to Female Dupont jumpers ... $ 2.20
(1) 5Vdc Wall-module Power Supply adapter at ~2A ... $ 3.10
(4) #6-32 x 2" Long Machine Screws or equivalent ... $ 0.24
(8) #6-32 x 1-1/4" Long Machine Screws or equivalent ... $ 0.40
(4) #6-32 x 3/4" Long Machine Screws or equivalent ... $ 0.20
(26) Corresponding hex nuts (#6) for machine screws ... $ 1.30
Modified GRBL Firmware @ https://github.com/tgit23/GRBL-28byj-48
Grbl Controller Software @ http://zapmaker.org/projects/grbl-controller-3-0/
TOTAL ESTIMATED COST (not including filament): $28.07 Detailed items/cost inside the Assembly document linked below.
