rPI clip - Nexdock connector for Raspberry Pi by gregrob

Last crawled date: 4 years ago

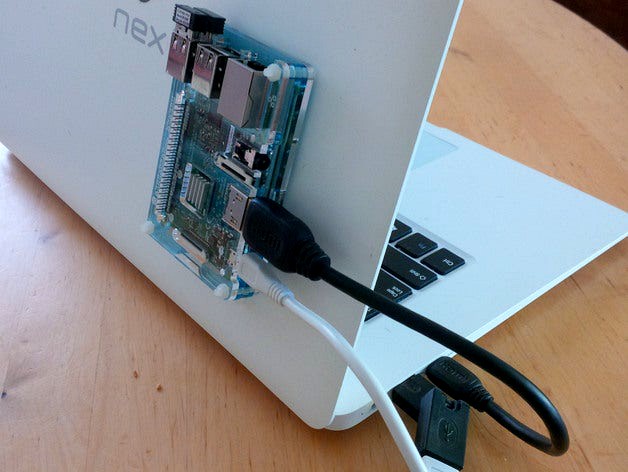

This is a 2 part clip to mount a Raspberry Pi onto a nexdock laptop. One part is glued to the case holding the rPi, and the other part is glued to the back of the screen on the nexdock. You just slide the pi down and the springy clips lock it in place. Push the handles open and it comes off.
Make sure you don't put glue on the springy arms when connecting to your rPi case. Dry fit the parts together before gluing to verify that the orientation is correct, and that you don't need to sand down any rough edges.
I use this on a rPi3 with a Pimoroni coupe case and it works great.
