Rotary Parking System SM8L
by CG Trader
Last crawled date: 3 years, 1 month ago

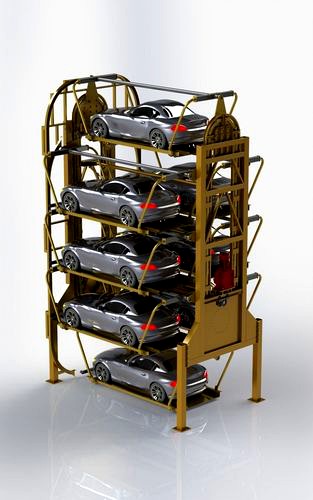

Rotary Parking System SM8L 3D model
The scale of the model is 1: 1. The rotary parking model is 8L.
This Unique Automated Mechanical Parking is designed to permit up to a maximum of 8 cars, on the surface area required to park 2 cars.
It is made of standard profile (GOST, ISO).
Specification:
System dimension: Length(mm)- 6370 (REQUIRED LENGTH), Width (mm)- 5050 (REQUIRED LENGTH), Height (mm)- 9500
Available car: Length(mm)- 5200, Width (mm)- 2100, Height (mm)- 1600, Weight (Kgf)- 2150
Geared motor (KW)-7,5 x 4p
Speed (m/min)- 3,2 (0.9 rpm)
It is quite successful when installed in busy areas which are well established and are suffering with shortage of area for parking.
Designed in Solid Works 2016 3d car industrial machine mechanical parking rotary smart system vertical industrial machine smart car
