Root 3 Proximity sensor holder for autosquaring gantry by andreabonuc
by Thingiverse
Last crawled date: 5 years ago

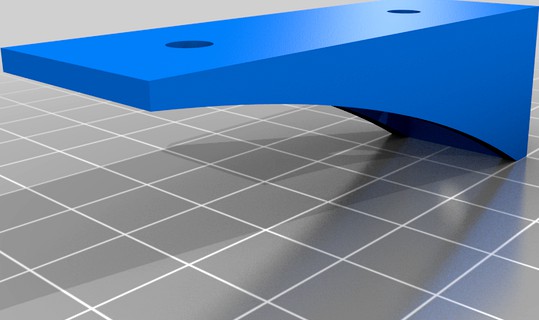

Sensor holders for autosquaring gantry. I used 8mm NPN NO sensors and 1mm detection.
For Mach3 the script for "Ref All Home" is:
DoOEMButton (1024)
DoOEMButton (1022)
RefCombination (10)
Always perfect gantry alignment at every homing.
You need 2 sensors, one for Y and one on the Slave axis. On the board they must be connected on 2 different pins. I have connected on input 2 all the endstop together with home Y and on input 3 only the slave axis (A in my case).
For Mach3 the script for "Ref All Home" is:
DoOEMButton (1024)
DoOEMButton (1022)
RefCombination (10)
Always perfect gantry alignment at every homing.
You need 2 sensors, one for Y and one on the Slave axis. On the board they must be connected on 2 different pins. I have connected on input 2 all the endstop together with home Y and on input 3 only the slave axis (A in my case).
