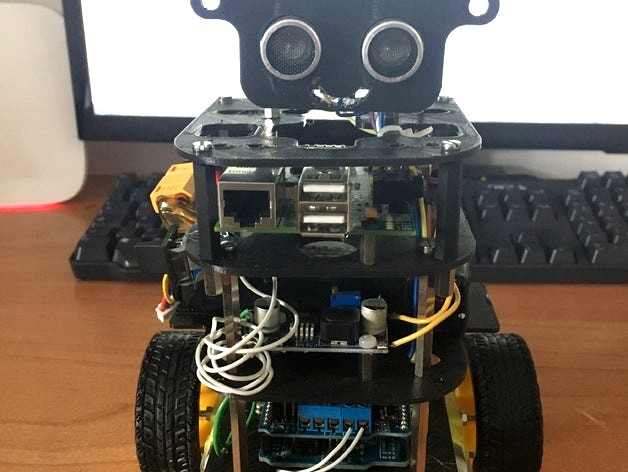

RobotPiv 1.0 Ultrasonic Obstacle Avoid by G_Bonatti

Last crawled date: 4 years, 7 months ago

this is a work in progress .
This robot was designed to have the electronic divided into multiple layers so as to adapt it better to the application for which it is born .
by the time I created 4 layers :
-1 : DC geared motor + Pivot Wheel + Arduino + motor shield
-2 : Battery + Voltage Regulator and power electronics
-3 : Raspberry PI
-4 : Ultrasonic Sensor + Seromotor
you can mount all the layers together or just the ones you need using M3 spacers
https://youtu.be/2EGT3N8I-2M
