RJ45 Shell for breakout board connection to stepper motor by tgmorris99
by Thingiverse
Last crawled date: 4 years, 8 months ago

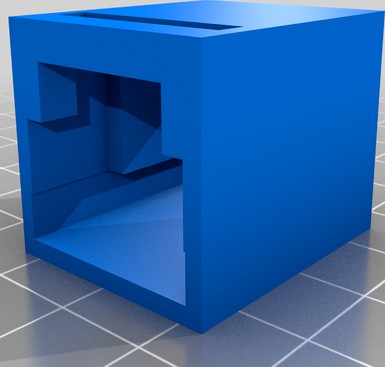

A simple shell for using an RJ45 connector and breakout board for use with a stepper motor.
This allows the use of a standard Ethernet cable to connect to a stepper when using OnStep or other controllers.
The completed RJ45 breakout board slips into the shell (it's a snug fit) and is captured in place by the DuPont connector
I mounted mine by using a TyWrap wrapped around the stepper and the shell however almost anything will work.
This allows the use of a standard Ethernet cable to connect to a stepper when using OnStep or other controllers.
The completed RJ45 breakout board slips into the shell (it's a snug fit) and is captured in place by the DuPont connector
I mounted mine by using a TyWrap wrapped around the stepper and the shell however almost anything will work.
