RJ45 Ethernet Connector with Wires

Last crawled date: 3 years, 6 months ago

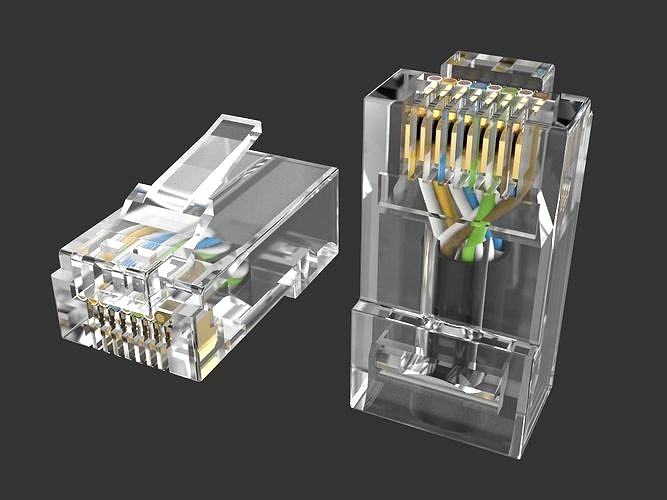

This is a model of Ideal Cat6 feed-thru RJ45 8P8C male plug, with an section of internal Cat6 cable, including the outer sleeve jacket, internal cross member, and internal 24AWG wiring. You can then add a custom cable to match the diameter of the cable section to create realistic renderings of a network installation. This is a highly detailed model of the connector, the dimensions were measured from the real product. Modelled in SolidWorks and rendered in KeyShot.
