RGB Underglow for CoolerMaster Notepal U2 Laptop Stand by ZodiusInfuser

Last crawled date: 4 years, 5 months ago

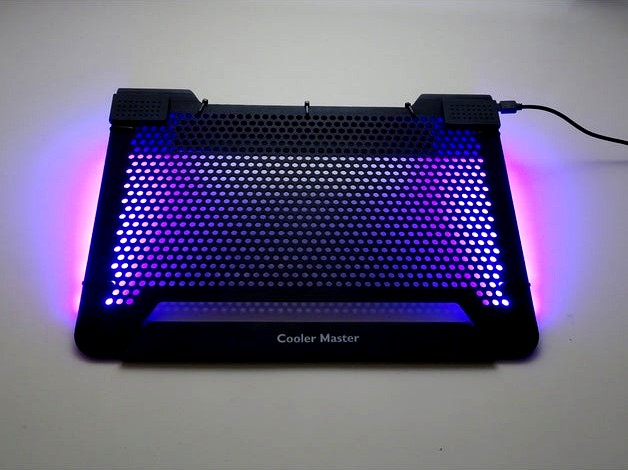

This is a collection of parts for adding RGB underglow lighting to the Notepal U2 Laptop Stand by CoolerMaster. Lighting is added to the left and right-hand sides of the stand, making it visible even when a laptop is resting on top. It was designed to connect to a USB RGB LED controller (mine was from Auraglow).
The underglow setup consists of:
2x LED_Backing
1x Left Angle Cover (A & B)
1x Right Angle Cover (A & B)
Also included are parts for two adapters (and an extension cable) that rewire the colour channels, allowing devices connected to the same controller to have different but synced effects.
Adapter prints:
1x Shift Adapter Cover (A & B) shifts the colour channels along
1x Cross Adapter Cover (A & B) swaps two colour channels around
1x Cable Cover (A & B) for making an extension cable
Components needed:
1x RGB LEDs + Controller Kit if not already used in eGPU (https://www.auraglow.co.uk/colour-changing-50cm-100cm-usb-strip-light-tv-backlight.html)
1x LED Headers (https://coolcomponents.co.uk/products/header-row-socket-female)
Cable braiding for connecting the left side to the right side
Super Glue, Zip Ties and Heat Shrink
Mounting of the parts to the stand is done using zip ties and cutouts that are modelled in to the LED_Backing strip.
