[Edit 17/11/17]
Added a new top version, where the NodeMCU is positionned on the center, so that the pin of the NodeMCU and the pin of the Mega2560 are out of line, making usage of dupont plugs more easy to position.
[/Edit]
RFlink is an awesome tool to make home automation.
In addition to a NodeMCU, the device can be anywhere in the house where the RF signal can be optimum. The NodeMCU can be used in two ways to make it network-enabled:
Use ESP Esay to implement a ser2net solution. This is the best solution for Domoticz.
Use a Homie-based MQTT gateway, like this excellent one: https://github.com/enc-X/mqtt-rflink-bridge
This is the best I found for OpenHab integration.

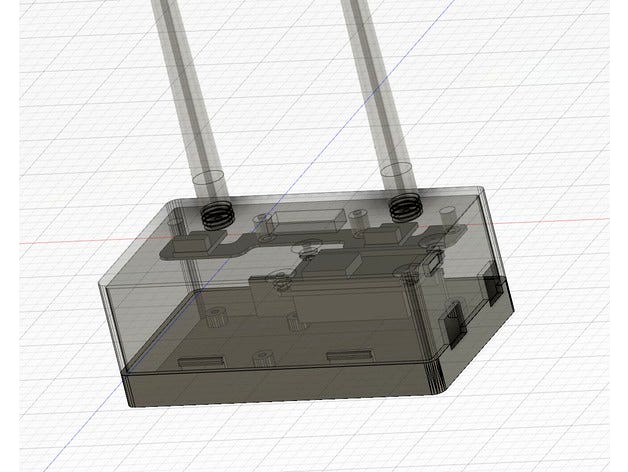

The case improve the initial design by adding:
Support Antenna to hold standard 17.3 cm wire from SYN115. The antennas are screwable into the 2 holes, can be removed for transport.
Support and maintain a 3.3V/5V level shifter
Support standard NodeMCU V1.0
Antennas are fully printable, but better use a brim or a raft to maintain them during printing. For screws, I used the same as those needed to maintain Cdrom in a PC, the size is just perfect.
