Respirator-free reanimation Venturi's valve
Filip Kober
March 18th, 2020

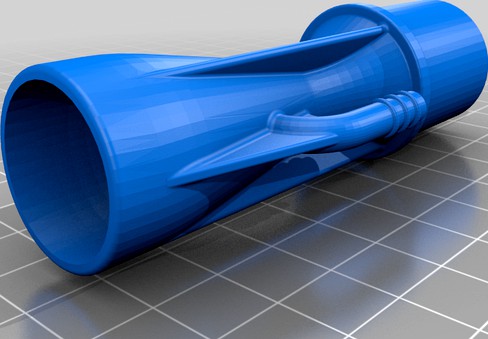

Ready-to-print Venturi's valve for respirator-free mask!
Non-profit project for SARS-cov-2 pandemy.
Revision 2 (CFD-calculated) available:
FiO2 = ~33%
O2 sup. = 10LPM
Air out. = ~63LPM
2x 25mm O.D. (air suction, patient)
1x 5mm O.D. (oxygen)
Volume of 3D model - 15133 mm3
Revision 1 contains 3 Venturi Valves with:
B = 0,12 ; 0,3 ; 0,5
