This is a project to manufacture filters compatible with IRobot roomba 760 cleaning robots. The main advantage of this filter is its low cost and can be easily cleaned and reused.

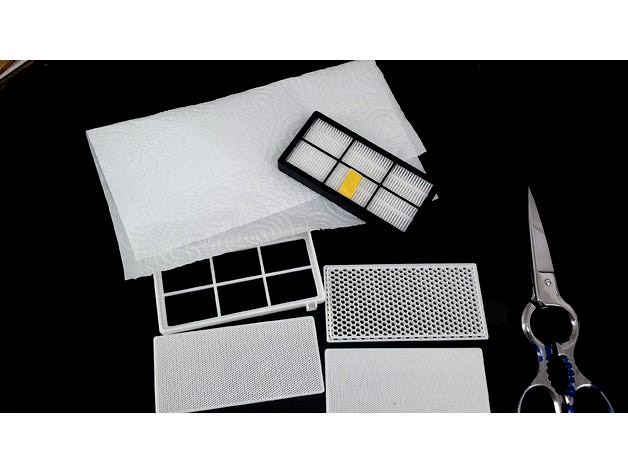

The filter consists of 4 printed pieces that are printed from three stl;
Filter01bot.stl, generates Filter01bot.gcode without settings
Filtro01in.stl, generates Filtro01in80.gcode and Filtro01in90.gcode without solid top and bottom layers and with hexagonal filling of 80%
Filtro01up.stl, generates Filtro01up30.gcode without solid top and bottom layers and with hexagonal filling of 30%
To improve the filtration, between Filtro01in80.gcode and Filtro01in90.gcode we place a layer of kitchen paper, which we tailor to the other pieces.
Using Simplyfy3D, the elimination of the top and bottom solid layers is achieved in the Layer tab and the adjustment of setting the 80% hex filling in the Infill tab
