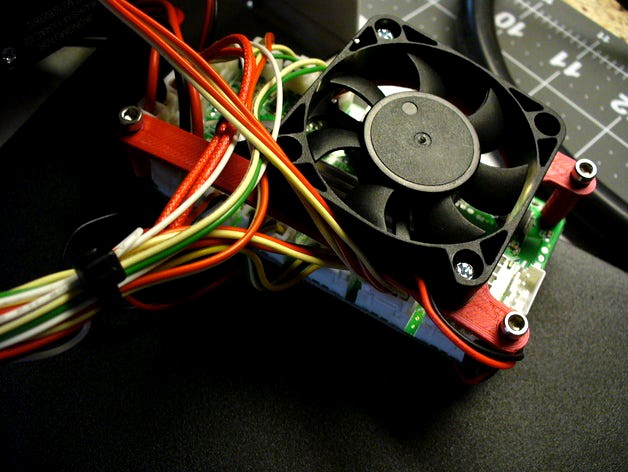

Remix-MP Select Mini Controller Board 50mm Fan Mount! by DIY3DTech

Last crawled date: 4 years, 7 months ago

This is a remix of https://www.thingiverse.com/thing:1667026 however it is modified to accept a 50mm fan rather a 40mm as we all know bigger is of course better! There are two versions the fist is like the original requires M3 stand offs (you can find them here: https://www.amazon.com/240Pcs-Brass-Spacer-Standoff-Assortment/dp/B00MNG2T6W/ref=as_li_ss_tl?s=gift-cards&ie=UTF8&qid=1477702322&sr=8-4&keywords=m3+standoffs&linkCode=sl1&tag=diy3dtech-20&linkId=1c5872261f9e6877b6cfa2374ce268ec) whereas version 2 has the standoffs designed in. Also you can get the 50mm fans (here: https://www.amazon.com/240Pcs-Brass-Spacer-Standoff-Assortment/dp/B00MNG2T6W/ref=as_li_ss_tl?s=gift-cards&ie=UTF8&qid=1477702322&sr=8-4&keywords=m3+standoffs&linkCode=sl1&tag=diy3dtech-20&linkId=1c5872261f9e6877b6cfa2374ce268ec) if your looking for them. Also the fan is 12VDC and simply soldered into the back of the board where the power leads connect just be sure to get the polarity correct and I have added two pictures to you understand the placement.
