Remaining filament length calculator by Deemoss
by Thingiverse
Last crawled date: 4 years, 7 months ago
Have you ever run out of filament mid print? This calculator will estimate the length of the remaining filament, based on 3 measurements of your spool.
Access the calculator:https://jscalc.io/calc/1Cj6c1zxnr4q8Tzw
Works for 1.75mm and 3mm filaments. All measurements are in mm. The resulting length is in m.

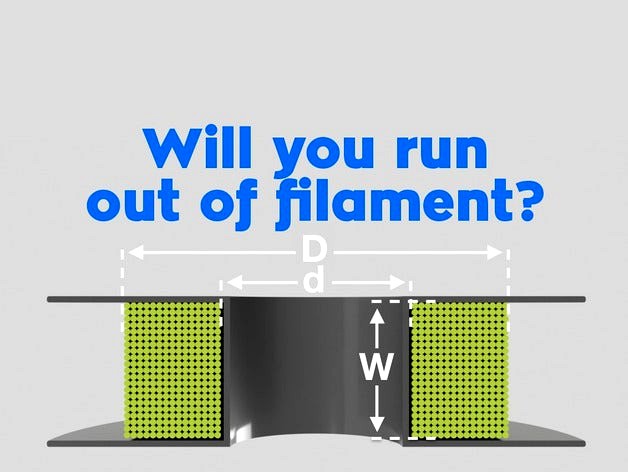

D - Outer diameter of the remaining filamentd - Diameter of the inner coilW - Inner width of spool
How it works: Calculates the volume of the filament on the spool and then divides by the area of the cross section of the filament. I have accounted for imperfect alignment of filament on the spool with a conservative factor of 0.8.
Access the calculator:https://jscalc.io/calc/1Cj6c1zxnr4q8Tzw
Works for 1.75mm and 3mm filaments. All measurements are in mm. The resulting length is in m.
D - Outer diameter of the remaining filamentd - Diameter of the inner coilW - Inner width of spool
How it works: Calculates the volume of the filament on the spool and then divides by the area of the cross section of the filament. I have accounted for imperfect alignment of filament on the spool with a conservative factor of 0.8.
