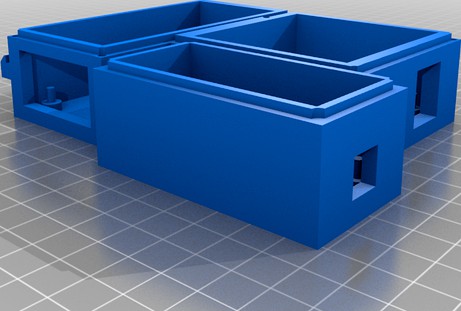

Relay 1.2 UPS 24V and XL4015 for Ender 3/Pro by SameshenJoe

Last crawled date: 4 years, 7 months ago

This design to combine all I currently use. I used this as a trial to learn how to design and will likely update this in the future to be 1 big box.
This was just my attempt at trying to create something that suits my needs.
Definitely useful as no screws are needed.
Buck converter used is the same as this: https://www.takealot.com/5a-cc-cv-buck-step-down-power-module-xl4015/PLID60539896?gclid=CjwKCAiA4rGCBhAQEiwAelVti59j7p1RMfzR2JYrHslaTp8Cmb-k10Vnb8JfyZABv36YhKNYeMonVBoC378QAvD_BwE&gclsrc=aw.ds
