Reach3D E3Dv6 & BLTouch Hot End Mount by radmeck
by Thingiverse
Last crawled date: 4 years, 7 months ago

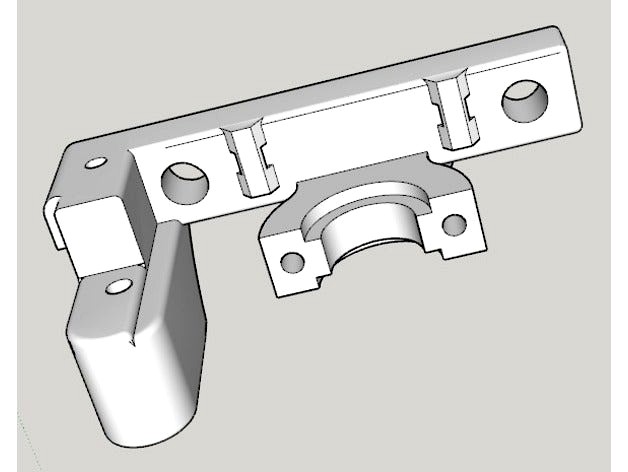

This mount is for Reach3D printers with an E3Dv6 hot end and a BLTouch sensor. It's a remix of kalrog2's excellent minimalist design. I adjusted the hot end mount a few millimeters lower and closer to the carriage to accommodate the E3Dv6. I also removed some material from the BLTouch mount and added a center hole for fine tuning of the sensor. Finally, I added cable tie slots on either side of the nozzle to help secure the wiring.
Set the probe offset for the BLTouch to X: -32
UPDATE 4/6/2017: With the blessing of the original designer, the hot end quick clamp is now included in the download. Thanks kalrog2!
UPDATE 4/12/2017: I've added a second version with slightly modified dimensions to accommodate the cooling solution I'm working on. Essentially, the BLTouch mount has been moved to the left and back a few millimeters.
Set the BLTouch offset on version 2 to X: -39
Reach 3d alternate hot end carriage by kalrog2http://www.thingiverse.com/thing:2203729
Set the probe offset for the BLTouch to X: -32
UPDATE 4/6/2017: With the blessing of the original designer, the hot end quick clamp is now included in the download. Thanks kalrog2!
UPDATE 4/12/2017: I've added a second version with slightly modified dimensions to accommodate the cooling solution I'm working on. Essentially, the BLTouch mount has been moved to the left and back a few millimeters.
Set the BLTouch offset on version 2 to X: -39
Reach 3d alternate hot end carriage by kalrog2http://www.thingiverse.com/thing:2203729
