RC Plane Wing Motor Mount Sky Cruise 2.4 meters by Tekniqueman
by Thingiverse
Last crawled date: 4 years, 5 months ago
I was tired of the noise from the pusher engine and the undersized traction of the original engine. so when I had an extra I decided to make it with 2 regular wing motors.
It is printed vertically and the settings for Gcode are in 3 sections as I from 38-42 mm have 100% infill, the rest is with 10% infill and 2 perimeter shells and 3 layers in top and bottom. The end piece is also printed vertically and with 10% infill, use support at the bottom as there is not much that has contact with the bed. also use extra support for the engine foundation as it only stands on a thin ring.
All parts are glued to the foam with UHU-Por.

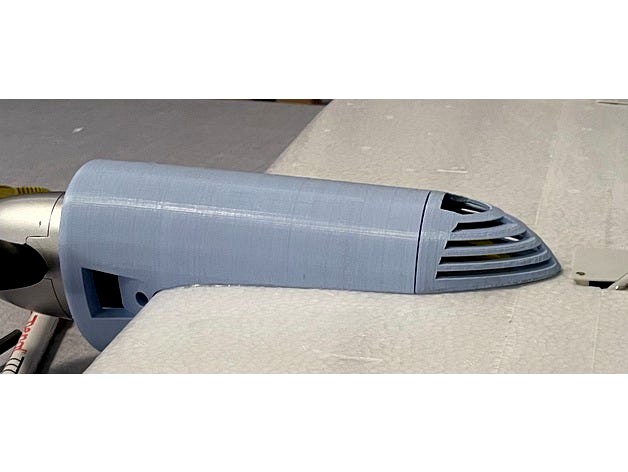

The back piece under the wing is made with cooling grooves as the ESC is hidden there.
I have attached the 3D drawing, so you can make changes yourself if you like.
