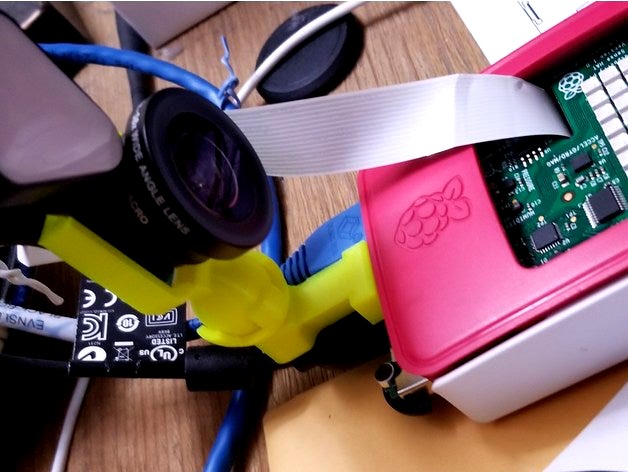

Raspbery Pi camera ball socket w/ usb & ethernet plugs by itsmefrosty
by Thingiverse
Last crawled date: 4 years, 8 months ago
2 ball socket remixes: to use a USB socket and more robust Ethernet version with clip
Remixed from 3 great designs.
Ball socket 1mm taller to improve stability from ball slipping out.
Ball diameters on the x & y also increase by 1mm to increase tight interference.
Modified the USB plug to remove lower edge support, allowing the actual USB plug to lay flat on the bed and get a clean model without supports needed.
Used ethernet plug with clip to lock in place.
Uses the ethernet plug model with some manual supports -- still working on more so currently still needs supports
Ball models and other all part of the tinkercad model.
Thinkercad model link: https://www.tinkercad.com/things/4CE4s68dUiD
