Raspberry Pico Macro Pad by sepro
by Thingiverse
Last crawled date: 4 years, 1 month ago

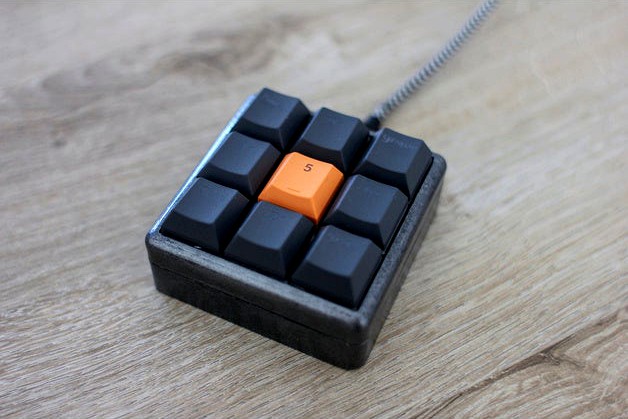

If you are looking to build a macropad with 9 mechanical switches and a raspberry pi pico inside this is the case you need. The design is a remix of VOID9 Macropad (based on the pro micro) and the Pico Armour case.
I've printed it myself and it fits perfectly, details for this build, instructions on how to set up the Pi Pico and the code itself are available from my blog: http://blog.4dcu.be/diy/2021/04/05/Macropad.html
Other items required:
9x Mechanical switch (tested with Gateron and Kailh)
9x 1.8 mm Led (optional)
9x 82 Ohm Resistor (optional)
a set of suited keycaps (e.g. numerical keys)
1x Raspberry Pi Pico, with CircuitPython
4x M3 bolt (1 cm)
Wire
Soldering equipment: Iron, solder and a third-hand tool
Hot Glue Gun
