Raspberry Pi Pibow Touchscreen Frame Reverser by BarbedWire
by Thingiverse
Last crawled date: 4 years, 12 months ago
The Pimoroni pibow frame/case:https://shop.pimoroni.com/products/raspberry-pi-7-touchscreen-display-frame?variant=6337432321
for the official Raspberry Pi 7" Touchscreen Display:https://shop.pimoroni.com/products/raspberry-pi-7-touchscreen-display-with-frame
when assembled leaves the screen upside down with the power cable attached to the top. The /boot/config.txt file needs to be edited with lcd_rotate=2 to turn the screen the right way up.

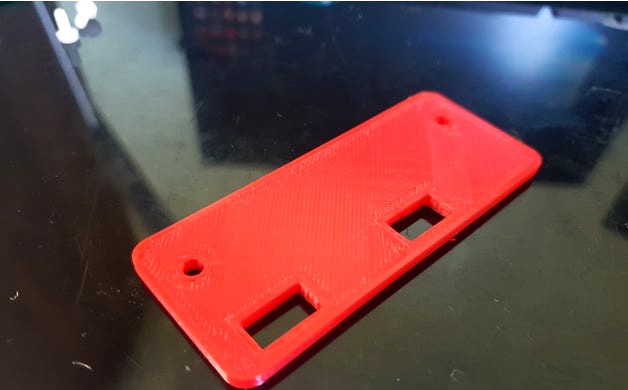

This mod replaces the locking stand plates reversing the orientation of the legs allowing the screen to be the right way up so the power cables connect at the bottom and eliminating the need to edit the /boot/config.txt file.
