Raspberry Pi HQ Camera Case w/ Uctronics Screen by pezhore
by Thingiverse
Last crawled date: 4 years, 11 months ago
Multiple changes to the Raspbery Pi HQ Camera Case:
Shortened front bracket - use smaller screws/offsets to mount the lens closer to the main support
Raised back case that allows for fanshim/Uctronics 3.5mm HDMI screen to be mounted

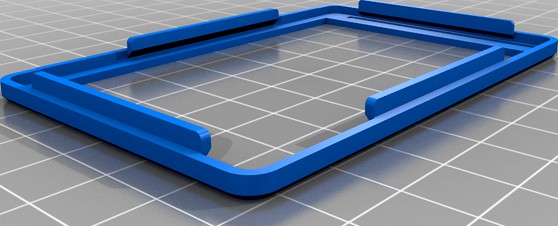

Uctronics screen frame that friction fits around screen.
This is pretty stable - the GPIO pins/screen help push against the new bridge across the USB/Ethernet ports, and the HDMI adapter helps sandwich the alternative side.
Of note - I've rotated the orientation so that the camera can be screw mounted to a tripod and the USB-c power is connected in the bottom.
