This is a project I build for the first Maker Faire in Germany (in Hannover):

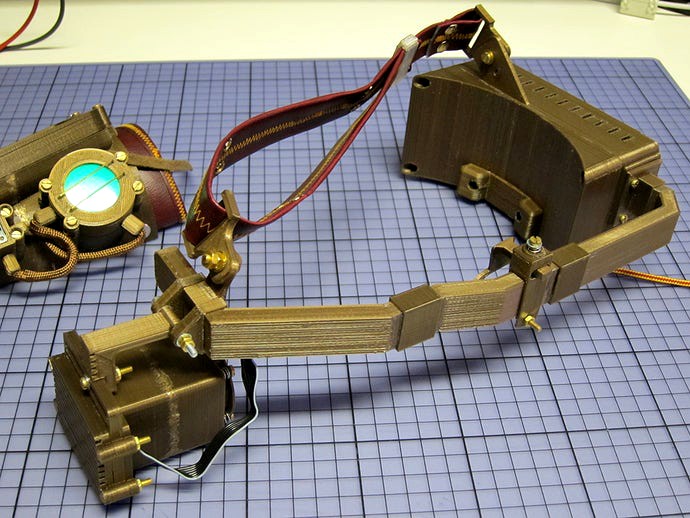

The Raspberry Pi Glass (or wearable Raspberry Pi)
Most of the project is printable with a 3D printer, I used gold colored PLA to get a retro futuristic look.
In addition to the printable parts you will need:
A Raspberry Pi ;-)
SainSmart 1.8 ST7735R TFT LCD Module: http://bit.ly/sainsmartdisplay
The kernel module for this display: http://www.whence.com/rpi/
2 small plastic or glass lenses
Small Bluetooth keyboard: http://www.ebay.de/itm/111079678580
Bluetooth dongle: http://www.ebay.de/itm/290762845726
USB Powerbank: http://bit.ly/powergenusb
~40 brass screws M3x20 (some has to be shortened)
1 brass screw M3x30
2 brass screws M4x20
~50 brass nuts M3
4 brass nuts M4
2 self tapping screws (must fit through the holes of the Raspberry Pi)
Artificial or real leather
A cheap wristwatch
Acrylic glass (fluorescent for a nicer look)
2 5mm UV LEDs and two matching resistors
A small switch
You will also need some small parts like rivets, cables, USB plugs etc.
