Raspberry Pi DFRobot 5" DSI touchscreen display
by Thingiverse
Last crawled date: 5 years, 9 months ago

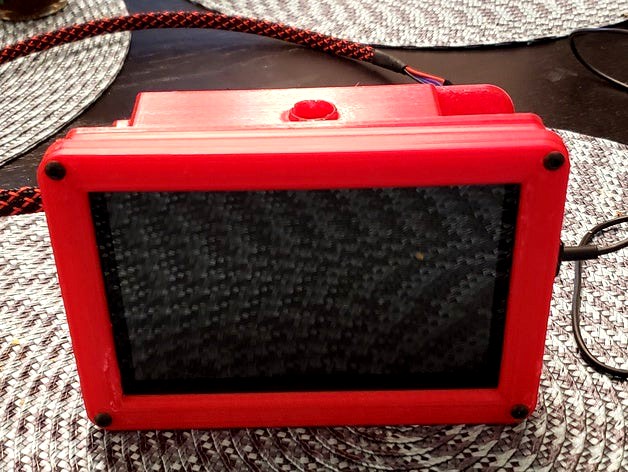

Touchscreen assembly for DFRobot 5" 800x480 TFT DSI touchscreen + Raspberry Pi and interior space for Pi HAT.
Requires:
4 M2.5x20mm screws for the back of the case
4 11mm standoffs between Pi and HAT (can be printed) + 4 M2.5x20 screws
4 M4x12mm screws to attach mini VESA mount to back of case
2 M5x30mm screws for bracket
Supports absolutely required for LCD mount.
Also see the VESA arm mount from: https://www.thingiverse.com/thing:2799628
To attach to the top of the printer frame with 2x M3 screws and t-nuts.
As an alternative, use Mount_Frame_2020_hole.stl for mounting with M5 screws and t-nuts.
Requires:
4 M2.5x20mm screws for the back of the case
4 11mm standoffs between Pi and HAT (can be printed) + 4 M2.5x20 screws
4 M4x12mm screws to attach mini VESA mount to back of case
2 M5x30mm screws for bracket
Supports absolutely required for LCD mount.
Also see the VESA arm mount from: https://www.thingiverse.com/thing:2799628
To attach to the top of the printer frame with 2x M3 screws and t-nuts.
As an alternative, use Mount_Frame_2020_hole.stl for mounting with M5 screws and t-nuts.
