Raspberry Pi Cirrus Logic Audio Card Case by Electrico
by Thingiverse
Last crawled date: 4 years, 7 months ago

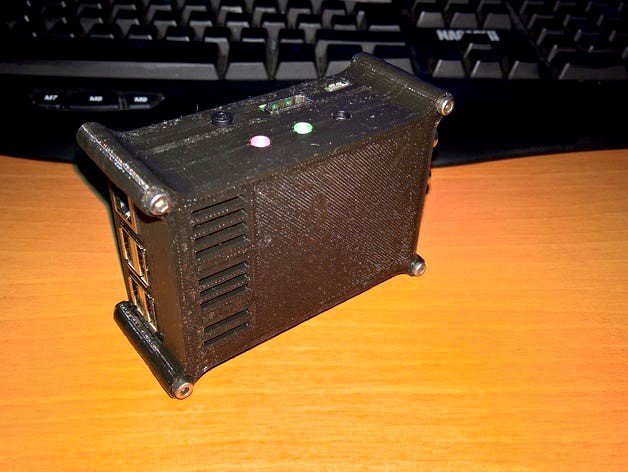

It is a box for raspberry pi (B+, 2 and 3) and Cirrus Logic Audio Card.
Requires four simple M3 x 40 screws to close the box, the plate and the card does not need any extra screws.
Added top lid with possibility to add leds status.
PCB available in: https://oshpark.com/shared_projects/qCaUgrRL
GPIO used: Red -> 5, Yellow -> 12, Green -> 6, button -> 26
Requires four simple M3 x 40 screws to close the box, the plate and the card does not need any extra screws.
Added top lid with possibility to add leds status.
PCB available in: https://oshpark.com/shared_projects/qCaUgrRL
GPIO used: Red -> 5, Yellow -> 12, Green -> 6, button -> 26
