Raspberry Pi Camera Servo Mount
by Thingiverse
Last crawled date: 6 years ago

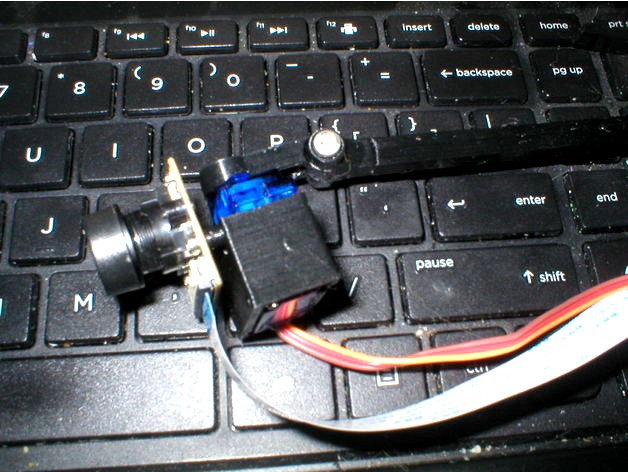

This is a mount that allows you to mount a Raspberry Pi camera onto a SG90 servo. The servo hangs from the arm and the camera mounts to the body of the servo. There's mounts that place the module directly on the servo, and others that angle the camera down 20 and 30 degrees. Stand sized and the larger IR cut modules are supported.
The hinge piece that holds the servo arm uses the screw included with the servo to attach it, with a 3mmx14mm screw in the hinge itself. On the types that have the module and servo on separate pieces, a 3mmx4mm bolt is required.
