Raspberry Pi Bitscope by commanderbeatle2

Last crawled date: 4 years, 5 months ago

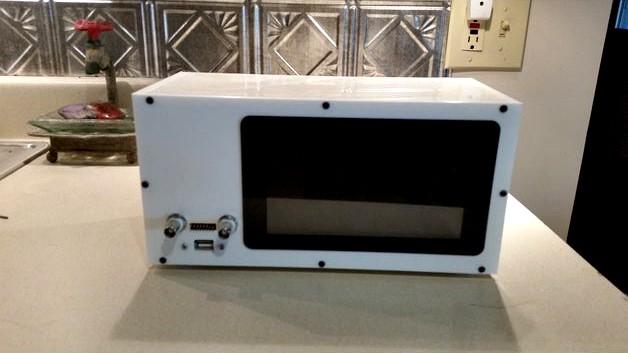

Raspberry Pi 3 B+ with Bitscope Micro and 7" touch screen. Features a USB port in the front for a mouse, ethernet in the back or you can use the built in wireless in the Raspberry Pi 3 B+. Hook up 5 volts from the power supply to the USB MicroB Plug Breakout to power the Raspberry Pi. Hook up the Fan to the 12 volt side of the power supply. I had to make make a extension cable for the Bitscope Micro and Hammer for it to fit in the case but was not that had to make.
Parts List
1 x Raspberry Pi 3 B+
1 x Bitscope Micro with HammerHead Attachment
1 x Raspberry Pi 7" touch screen
1 x Mean Well RD-65A 12 volt 5 volt Power Supply https://www.amazon.com/gp/product/B005T7EZM8/ref=oh_aui_detailpage_o04_s00?ie=UTF8&psc=1
1x USB MicroB Plug Breakout https://www.sparkfun.com/products/10031
1 x 12 volt fan https://www.amazon.com/gp/product/B005C31GIA/ref=oh_aui_detailpage_o04_s00?ie=UTF8&psc=1
1 x C14 socket https://www.amazon.com/gp/product/B06XV831F3/ref=oh_aui_detailpage_o04_s00?ie=UTF8&psc=1
1 x Panel Mount USB https://www.adafruit.com/product/908
1 x Panel Mount Ethernet https://www.adafruit.com/product/909
21 X M3 x 8mm cap screws (Front and Back plates and power supply)
12 X M3 x 12mm cap screws (Side plates)
4 X M3 x 30mm cap screws (Fan)
4 X M3 nuts (Fan)
28 X Threaded Inserts (https://www.amazon.com/gp/product/B00VGDR1LQ/ref=oh_aui_detailpage_o08_s00?ie=UTF8&psc=1)
1 X On/Off Rocker Switch (Ace Hardware P/N 61104)
