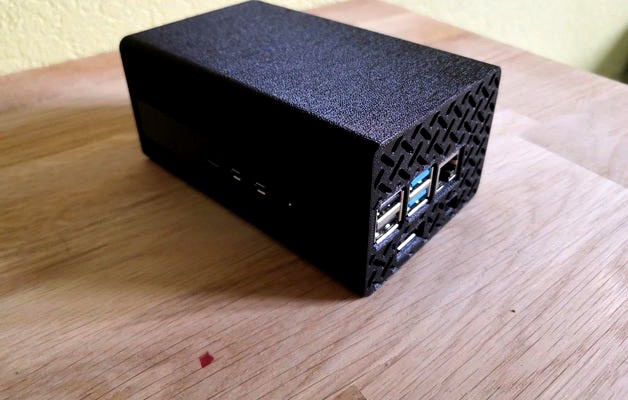

Raspberry Pi 4B Case with Noctua NF-A4x20 5V Fan by Pillar817
by Thingiverse
Last crawled date: 4 years, 8 months ago
Rpi4B case designed to be use with a NOCTUA NF-A4X20 5V FAN
Use the screws provided in the fan package to mount the fan on the Rpi Support.
Use M2.5 screws to fix the Rpi on his support
*Gaps in front of the fan section could be use to add a small dust filter (Tip: add it before fixing the grid)
Use M3 screws to fix the grid to the Rpi Support
Optional SSD
I use Sabrent USB 3.0 SSD case disassembled just to keep the PCB
(https://www.amazon.fr/gp/product/B00OJ3UJ2S)
Use M2.5 screws to fix the SSD on his support
Slide both supports into the body, and that's everything :)
