Raspberry Pi 4 - PoE Texas Hat - 40x10 Noctua Fan Case
by Thingiverse
Last crawled date: 5 years, 3 months ago

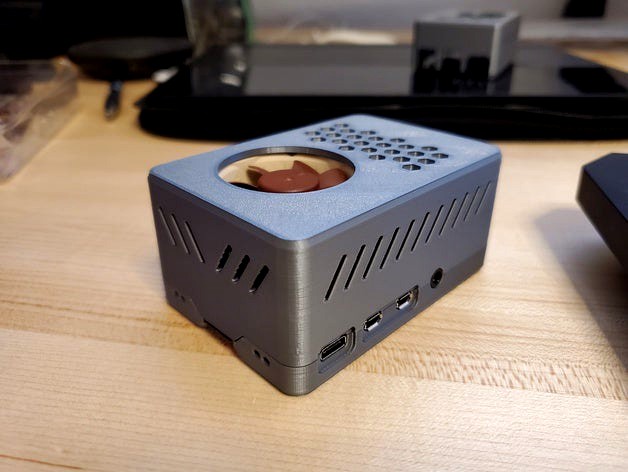

I Stretched the case designed by Haz1 to make room for a POE Texas hat. Just a simple remix. It's pretty rough but does exactly whats needed. Thanks for the great work Haz1
find his original thing:https://www.thingiverse.com/thing:3724434
Poe hat:https://www.amazon.com/PoE-Texas-Raspberry-Accessories-GAF-PiHAT-FBA/dp/B07TVFFHVP/ref=sr_1_2?keywords=Poe+texas+pi&qid=1573003994&sr=8-2
Fan:https://www.amazon.com/gp/product/B00NEMGCIA/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
This is completely toolless. If you use these materials you slide on the poe hat, cut the yellow fan wire completely off, then strip back the red and black. Insert them into the poe hat gpio pin holes for 5v and ground. You can squeeze the wires in and they'll stay put or solder them in if you'd like. This drops my pie from 139F to 102F and it's nearly silent.
Added 60mm Tall version with room for.. lots.. of stuff.
