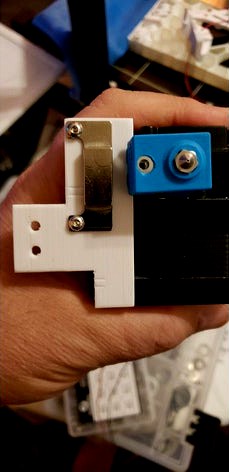

Rail Mount for Hemera onto Anycubic Chiron

Last crawled date: 5 years, 10 months ago

Ok.. I think this is everything needed is here I added the fan ducts as well.. but they are not my design only the mount for them I added a place for the chiron terminal block.
Newest Version is the V4.1 - and its my final..
Check it out.. I have printed in ABS, but PETG and others should be ok.. I used about 8 outlines.. 6-8 layers top bottom and like 90% fill for most..
Some issues that this set-up clears..
Reuse the OEM belt
Rotated Cable Chain so nothing will be touching filament or anything
Heat Block can be rotated/removed while whole set-up is in place
(Fan Duct Assy will need to be off, 2 Fasteners)
I also added "X" Tensioner https://www.thingiverse.com/thing:3339250
I also added a T-Nut and 20mm Bolt on the Right side of the Rail to prevent the Car going to far right and loosing (more ball bearings..doh, I dropped three that I found, I was able to carefully move the car to the end and put them back in.. still not sure if it was only 3 but seems to move ok..whew.
Good Luck.. questions just ask
https://www.thingiverse.com/thing:4087121
Rail: I bought the 500mm perfect size. Mini Linear Rail Guide, 500mm Linear Sliding Guide with Carriage Block. if you buy 550, you will need to cut it down..you get full movment with 500.
https://www.amazon.ca/gp/product/B078M7N5M2/ref=ppx_yo_dt_b_asin_title_o01_s01?ie=UTF8&psc=1
Gonna need some hardware.. nuts bolts wire etc.. but I'm hoping to get this together soon.. Printing in next day.. I'll add pics once it done again.
