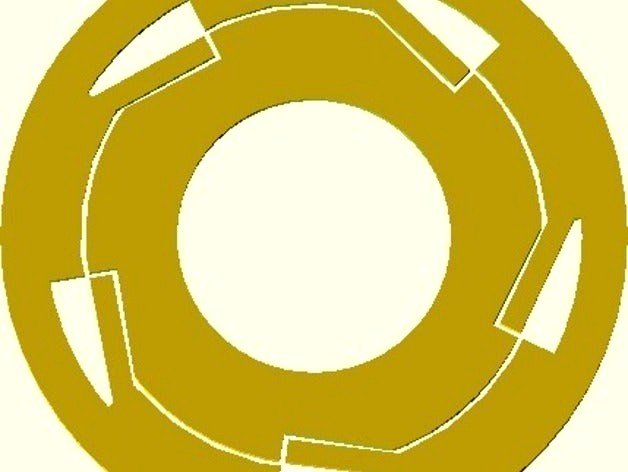

Radial Load Bearing Ratchet Proof of Concept by syvwlch
by Thingiverse
Last crawled date: 4 years, 8 months ago
This is a first attempt at modifying RustedRobot's ratchet design so that it can carry significant radial loads, e.g. from the weight hanging off the power drum of a clock.
The current design relies on the ratchet arms to carry the load, but they have to remain thin and springy as well... So far in the clock, this has required a complicated and thick part which must use spokes that reach over the inner wheel to reach the shaft.
Hopefully with this refinement, the ratchet can carry large radial loads, be contained in a single gear's thickness and perhaps even be printed in place.
The current design relies on the ratchet arms to carry the load, but they have to remain thin and springy as well... So far in the clock, this has required a complicated and thick part which must use spokes that reach over the inner wheel to reach the shaft.
Hopefully with this refinement, the ratchet can carry large radial loads, be contained in a single gear's thickness and perhaps even be printed in place.
