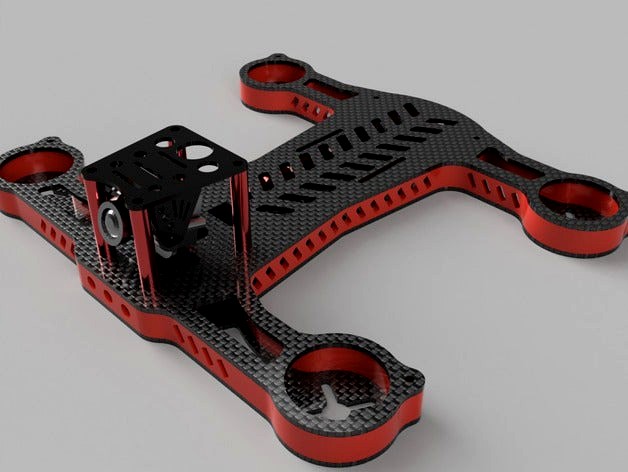

Quadcopter H 210mm, 2204 (27mm diameter) motor mount, fit 5 inch props.
Generated with my Parametric Quadcopter Generator.
Compatible with my Quadwich GPS Holder & Hat.
Fit on a 20x20 printer bed with no skirt (verified in Cura)
UPDATE
Uploaded a version that realy fit a 20x20 bed.
BUILD INSTRUCTIONS
Part list :
8x M3x8 screws
16x M3x6 screws
4x 30mm spacers (alu or nylon)
1- Screw the bottom plate to the spacer from downside with M3x8 screws, directly in plastic. DO NOT overthight !
2- Screw the 30mm spacers to top plate from inner side.
3- Install electronics components
4- Screw top plate to spacer from upperside, directly in plastic with M3x6 screws. DO NOT overthight !
5- Screw Hat to 30mm spacers with M3x6 screws.
