QFH Antenna for 145mhz by NA8E
by Thingiverse
Last crawled date: 4 years ago
Some parts for a QFH antenna I made.
I designed this for 145mhz for ISS, and amateur radio. Great for satcom or APRS. It seems to work ok for NOAA APT sats as well.

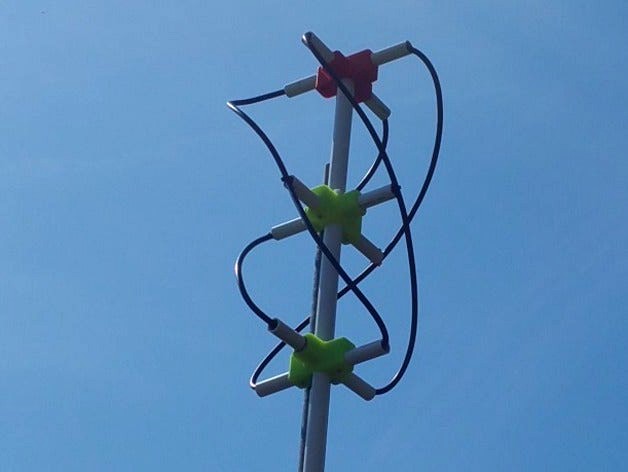

Mine is mounted on fiberglass mast at around 20ft. SWR is usable for transmitting over most of the 2m band.
73s
NA8E
I designed this for 145mhz for ISS, and amateur radio. Great for satcom or APRS. It seems to work ok for NOAA APT sats as well.
Mine is mounted on fiberglass mast at around 20ft. SWR is usable for transmitting over most of the 2m band.
73s
NA8E
