those solids are the demo object generated by this python library.
it is a new python library in developing which enable declaration style solid model design, reduce code size, readable, and elementary parts ready to use.
this library need solidpython (>=0.1.2):https://github.com/SolidCode/SolidPython
change log
==============

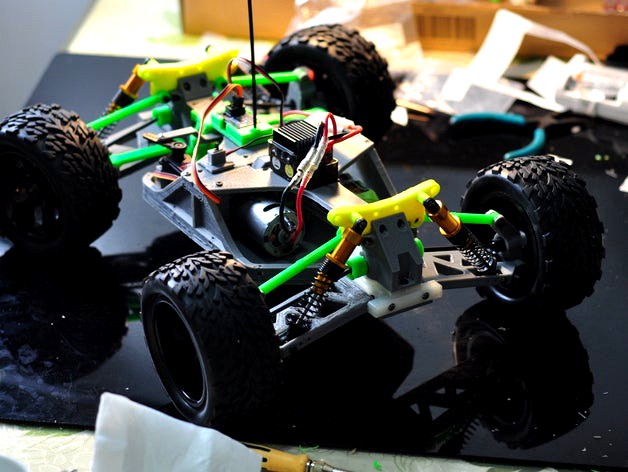

decscad.tar.gz: a fairly stable library version, most of feature completed, and lot's of examples inlcuding openRC truggy modification.
1 . decbox.rar: old version library,
By heyongli@gmail.com
example:
class BallScrewCap(bp.Part):
h=6
ch=2.5
def __init__(self):
super(BallScrewCap, self).__init__()
self.rotate(y=180).up(self.h)

@bp.bases
def cylinder(self):
return st.Cylinder(r=12/2.0,h=self.h)
@bp.holes
def ball_hole(self):

return [ st.Cylinder(r= 5.7/2.0,h=self.h+0.2,segments=64).up(-0.1),
st.Sphere(r=6.1/2.0, segments=64),
# locker
st.Cylinder(r=9.5/2.0, h=self.ch, segments=64).up(-0.1)
-st.Cylinder(r=8.5/2.0,h=self.ch,segments=64).up(-0.1),
st.Cube([3,9,self.ch]).up(-0.1)
]
class streering_pin(bp.Part):
@bp.bases
def caps(self):
return BallScrewCap(),BallScrewCap().translate(x=50)
@bp.bases
def arm(self):
len=49.0-8.0
return st.Cube(size=[len,8, 5]).translate(x=len/2).translate(x=4.5)
