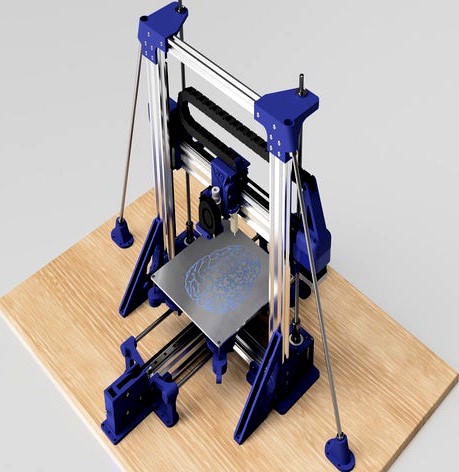

Overview
The goal was to make a fast printer. Currently printing quite comfortably at 200mm/s with 3000mm/s2 acceleration. (The benchy in the pic took 20 minutes)
The design does include oldham coupling but from what I've seen they aren't necessary unless your lead screws are not straight.
Base
Mount on a 850mm x 610mm piece of MDF or melamine.
Part list
Fasteners
Part
Count
M4x8
93
M4x10
11
M4x20
15
M4x25
1
M4x30
17
M4x35
3
M4 Nut
32
M4T Nut
119
M4x15
16
M3x6
24
M3x8
20
M3x10
9
M3x12
4
M3x15
4
M3x20
1
M3x25
2
M3x30
6
M3x50 Counter Sunk
4
M3 Nut
15
M3 T Nut
20
M2
2
M8 Nut
8
8mm Threaded Rod 450mm
2
Hardware
Part
Count
608ZZ
2
Locking Collars
2
Heatbed Springs
4
T8 Lead screw 400mm with Nuts
2
4020 x 420mm x 1m
2
2020 x 380mm
1
8mm Shaft x 400mm
2
SCS8 Bearing
4
MGN12 300mm
4
Shaft Coupler
2
GT2 Pulley
4
GT2 Geared
2
GT2 Belt 2.5m
1
Drag Chain 4516T45 500mm
1
Electronics
Part
Count
Nema 17 Steppers
4
MK3 Heatbed
1
E3D v6
1
5015 Radial Fan
1
Endstop Switches
2
The X endstop is designed to clasp a SS-5GL part. The usual ones may fit, but this is the preferred part.
Controller
I'm using an MKS base with TL Smoothers and Klipper firmware.
https://www.youtube.com/watch?v=MzsCOpELjzc&feature=youtu.be
