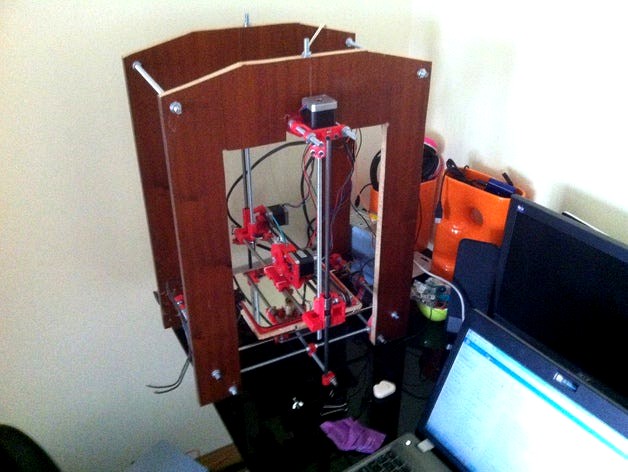

PRUSA MENDEL II Z-MOD by Metaball
by Thingiverse
Last crawled date: 4 years, 6 months ago
New modification for Prusa Mendel II.
I was so borring to be only capable of printed z-little things. So I was thinking a way to modificated the REPRAP prusa in a way with this advantages;
1.-No new configurations or new calibrations.
2.-A full reusable pieces as posible.
3.-No new wires (perhaps a wire prolongation). Not in my case.
4.-A hight speed modification.
5.-A long z-axis as posible. In my case more than 40 cms.
6.-Rigid frame.
The woden frame was take from the street ( probably a door of a wardrove).
There is no planes because it was done supported in the old rerap printer.
1.-First you put the wood pieces at both sides.
2.-Second,disarm the four diagonal rods bars.
3.-Take two of those 4 rods and put it at the top of the frame.
4.-Cut two squared to place the top 2-z holders.
5-Compleate the sistem with the z-rods/bars.
And he we go. Enjoy
