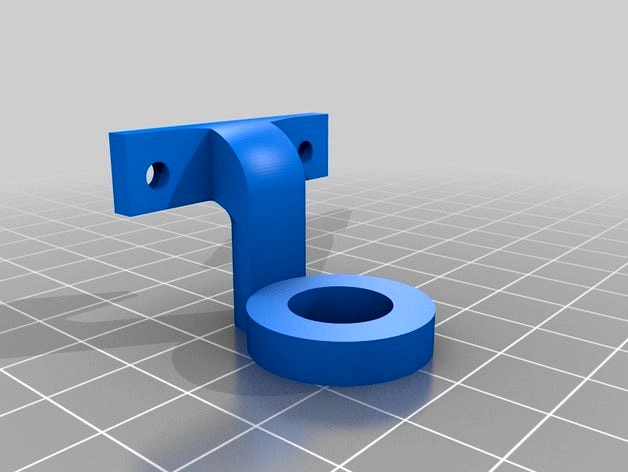

Proximity sensor mount for i3 Rework E3D Extruder v3 by FDMTech
by Thingiverse
Last crawled date: 4 years, 1 month ago
Difference from v2 is that it is now positioned more to the center of the hot-end in the Y direction. This prevents the bed to be out of reach from the sensor as was the case with the v2 as well.
Notes from v2 remain the same:
Korri on thingiverse made this. I completely re-did it in 123D so that it can mount lower and fits a i3 Rework E3D Extruder:http://www.thingiverse.com/thing:257811http://www.thingiverse.com/thing:415175 (1.75mm)
I used a LJ12A3-4-Z/BX sensor with this thing.
The previous mount from Korri wasn't low enough to hold it and have it sense the build plate.
Notes from v2 remain the same:
Korri on thingiverse made this. I completely re-did it in 123D so that it can mount lower and fits a i3 Rework E3D Extruder:http://www.thingiverse.com/thing:257811http://www.thingiverse.com/thing:415175 (1.75mm)
I used a LJ12A3-4-Z/BX sensor with this thing.
The previous mount from Korri wasn't low enough to hold it and have it sense the build plate.
