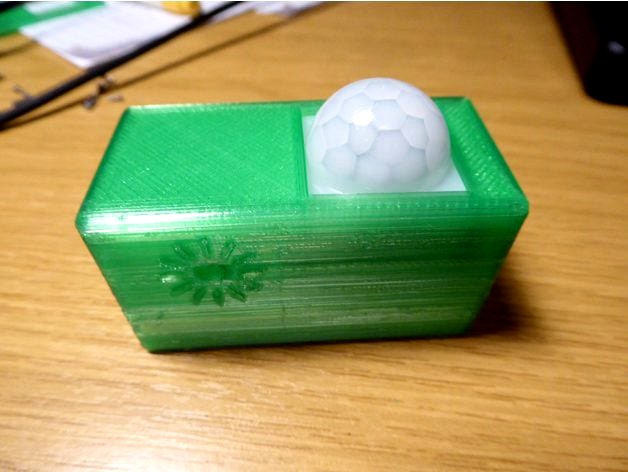

Proximity sensor case HC-SR501 by Divergentti
by Thingiverse
Last crawled date: 4 years, 11 months ago
This is first 3D design for PIR sensor HC-SR501 and ESP32-Wroom-32 to be used in homeautomation (IoT, mqtt) projects.
Holds reservation for 12V to 5V converter (41Lx20Wx14H).
Holes 4 mm with ISO M4 threads and M2.5 screws for ESP32 and PIR connectors.
Micropython code for ESP32-Wroom-nodeMCU available in here https://github.com/divergentti/kanalanautomaatio/tree/master/esp32-liiketunnistus
