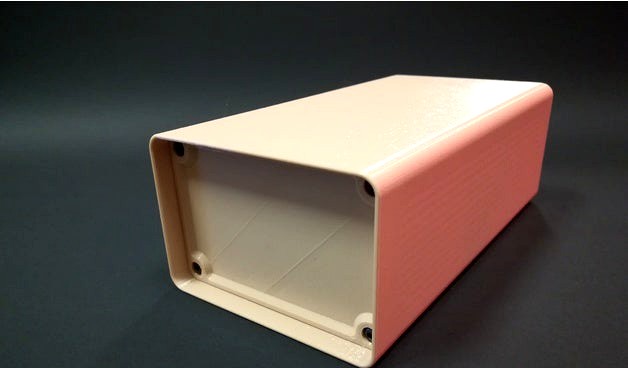

Prototype PCB electronics enclosure
by Thingiverse
Last crawled date: 5 years, 11 months ago
Most instrument enclosures on the market are designed in such a way that you have to design custom PCB for the box. These are designed the opposite way to accommodate most widely available prototype PCB sizes to give your prototype PCB projects professional enclosure.
for PCBs search e-bay, aliexpress etc. :double side universal prototype pcb board FR4 8x12 9x15 12x18
and leave only size you are searching for
file names
PCB size_shape_overhang size_part name
Design features
1) Sizes - to accomodate widely available prototype PCB sizes
8x12 cm
9x15 cm
10x16 cm Eurocard PCB
12x18 cm
2) Designed for print on Prusa i3 MK3 (width 25 x depth 21 x height 21 cm build volume)
3) Panels
overhang - to protect controls & connectors during harsh handling and transport
compact - to build neat benchtop instruments
4) Shapes
1X2 - height = half of the width
2X3 - height = two-third of the width
