Protoboard Baseplate by AutomationExploration
by Thingiverse
Last crawled date: 4 years, 11 months ago

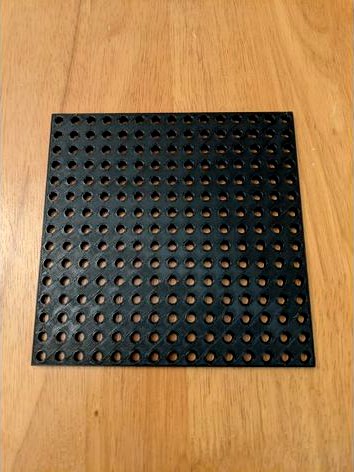

The main baseplate of the protoboard. It is 150 mm x 150 mm x 5 mm.
Using other parts which should be in the Modular Protoboard collection, you can attach multiple baseplates together for a bigger build area, and also mount different components.
Each hole has 5 mm between holes North, South, East, and West of it.
I uploaded the f3d file and step file in addition to the stl. Feel free to edit it however you like and use it in other projects if it is helpful, please attribute it though : )
As for attaching other boards and components together, I have been using m4(16mm long) bolts and nuts. Not the most elegant, but it does the trick. I am working on a better solution, so totally open for suggestions!
Let me know if you have any questions or suggestions!
